Materials > Etch Tools

 These charts (Thin Film Etching | Laser Etching ) are for quick reference. For the latest up to date information, use the search in the top menu bar to look for equipment which deposit/etch the material.

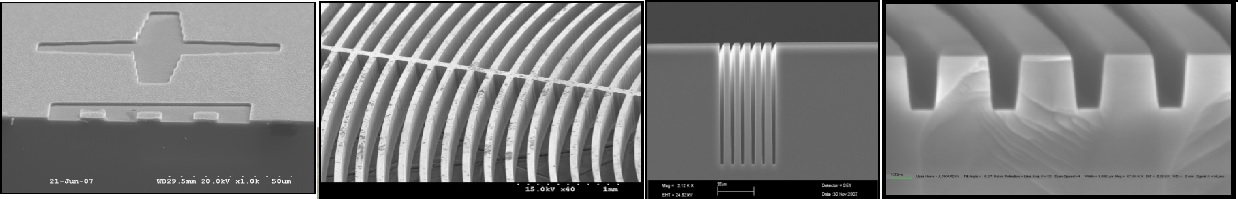

 Etching


ICP
Allowed Masks		   SiO2   Shallow
Si		   Deep
Si		   III-V   GaN   Si3N4   Al   Cr   Polymer
Oxford ICP-PECVD
Plasma Therm ICP                       x   x
STS AOE ICP     Si, PR, Cr, Ti & Ni   x       x           x
STS HRM ICP   PR, Si3N4, SiO2   x       x
STS ICP
STS Pegasus ICP   PR, Si3N4, SiO2           x
STS SOE ICP    PR, SiO2, Si3N4, III-V   x   x       x   x

RIE		   Allowed Masks   SiO2   Shallow
Si		   Deep
Si		   III-V   GaN   Si3N4   Al   Cr   Polymer
Advance Vacuum Vision RIE 1   Metal, PR   x   x               x           x
Advance Vacuum Vision RIE 2   Metal, PR   x   x               x           x
Oxford End-point RIE   Metal, PR   x                   x           x
Plasma Therm RIE (Right chamber)   Metal, PR   x   x               x           x
Plasma Therm RIE (Left chamber)   Metal, PR       x       x       x   x   x
Plasma Therm SLR RIE (Right chamber)   only PR, Si3N4, SiO2           x
Plasma Therm SLR RIE (Left chamber)    Metal, PR   x           x       x   x   x
Technics Micro RIE   (Descum)       x                           x
Unaxis RIE   PR, Si3N4, SiO2       x                           x

OTHER		   Allowed Masks   SiO2   Shallow
Si		   Deep
Si		   III-V   GaN   Si3N4   Al   Cr   Polymer
Hydrofluric (HF) Vapor Etcher   PR, Si3N4, SiO2   x
Y.E.S.-R1 Plasma Cleaner    (Descum)       x                           x
Gasonics Asher (Pettit | Marcus Inorganic)   (Descum)                                   x
Xactix Xenon Difluroide Etcher   (also etches germanium and molybdenum)       x

Laser Etching


Laser		   Laser info   Resolution   Polymers   Wood   Paper   Plastics   Metals
Hermes LS500XL CO2   CO2 laser @60W, approx 1mm wavelength   200um spot and sub mm movement   x   x   x   x   Angstrom depth
Resonetics IR   Nd-YLF laser @16W, 1047nm wavelength, 20us pulse/ms   50um spot and sub um movement                   up to 200 microns
